NETC is the most advanced emission testing facility in the ASEAN region (measuring up to EURO 6D emission standard – WLTP). NETC is also open to the public including the government, car manufacturers (OEM), research institutions, academia, private sector companies, etc.
| Item | Specification |
|---|---|

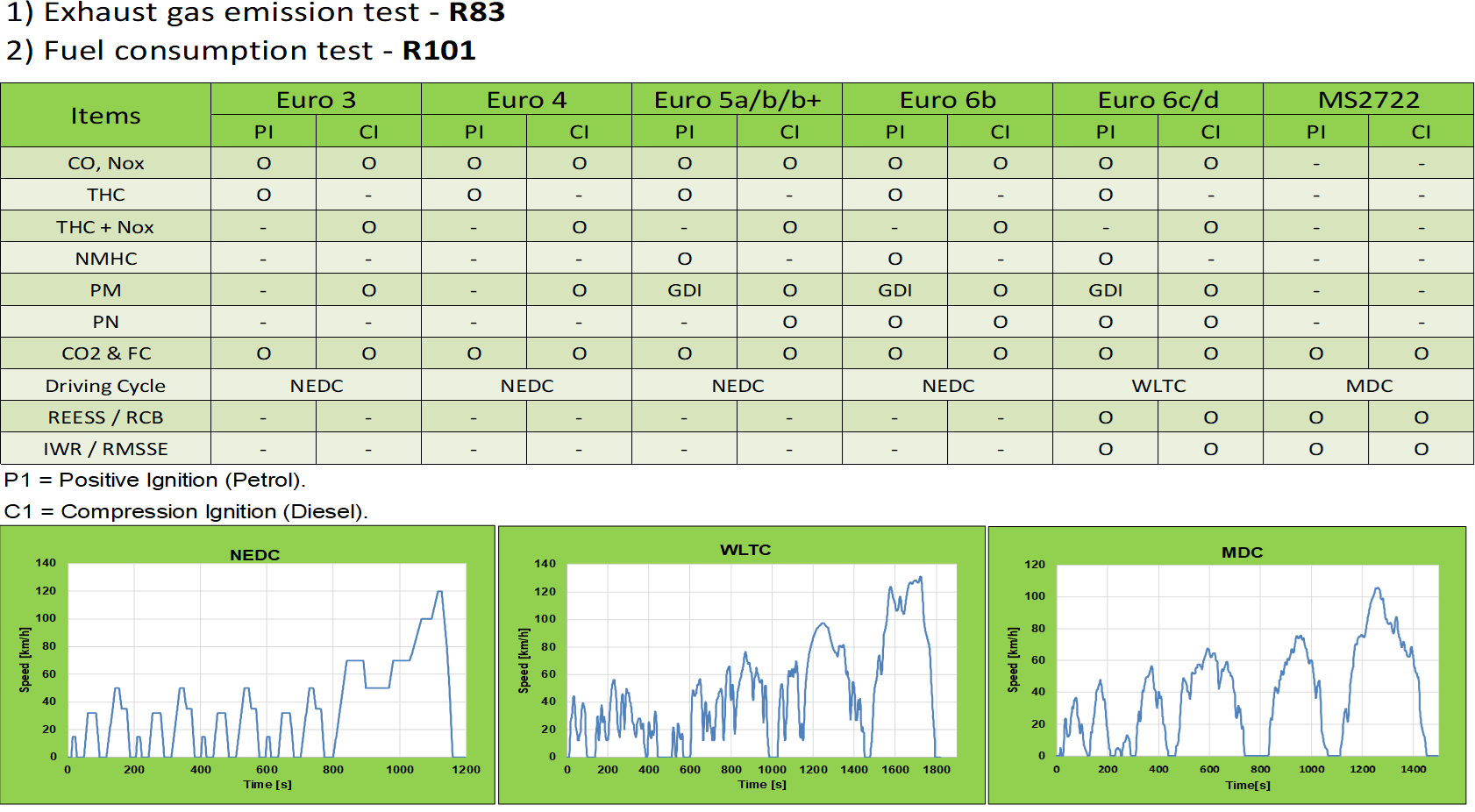

| Regulation to be applied | UNR83 (Emission) UNR101 (Fuel Consumption, Electric Range and Energy Consumption), Euro 6D, WLTP |
| Vehicle to be tested | Light duty vehicle 2WD, 4WD |
| Vehicle wheel base | 1800 – 3400mm |
| Powertrain to be tested | Spark Ignition (SI) Incl. Gasoline Direct Injection (GDI), Compression Ignition (CI) Electric Motor |
| Fuel type | Gasoline, CNG, LPG, Diesel |
| Maximum power | 155kW (207 hp) |
| Maximum axial load | 2,500 kg |
| Room temperature | -7 °C – +60°C |
| Room humidity | 25% – 75% (20°C – 30°C) |
| Solar simulation system | 1200 W/m2 |
| Vehicle Type Approval (VTA) / Homologation |
| Energy Efficient Vehicle (EEV) MS2722 |

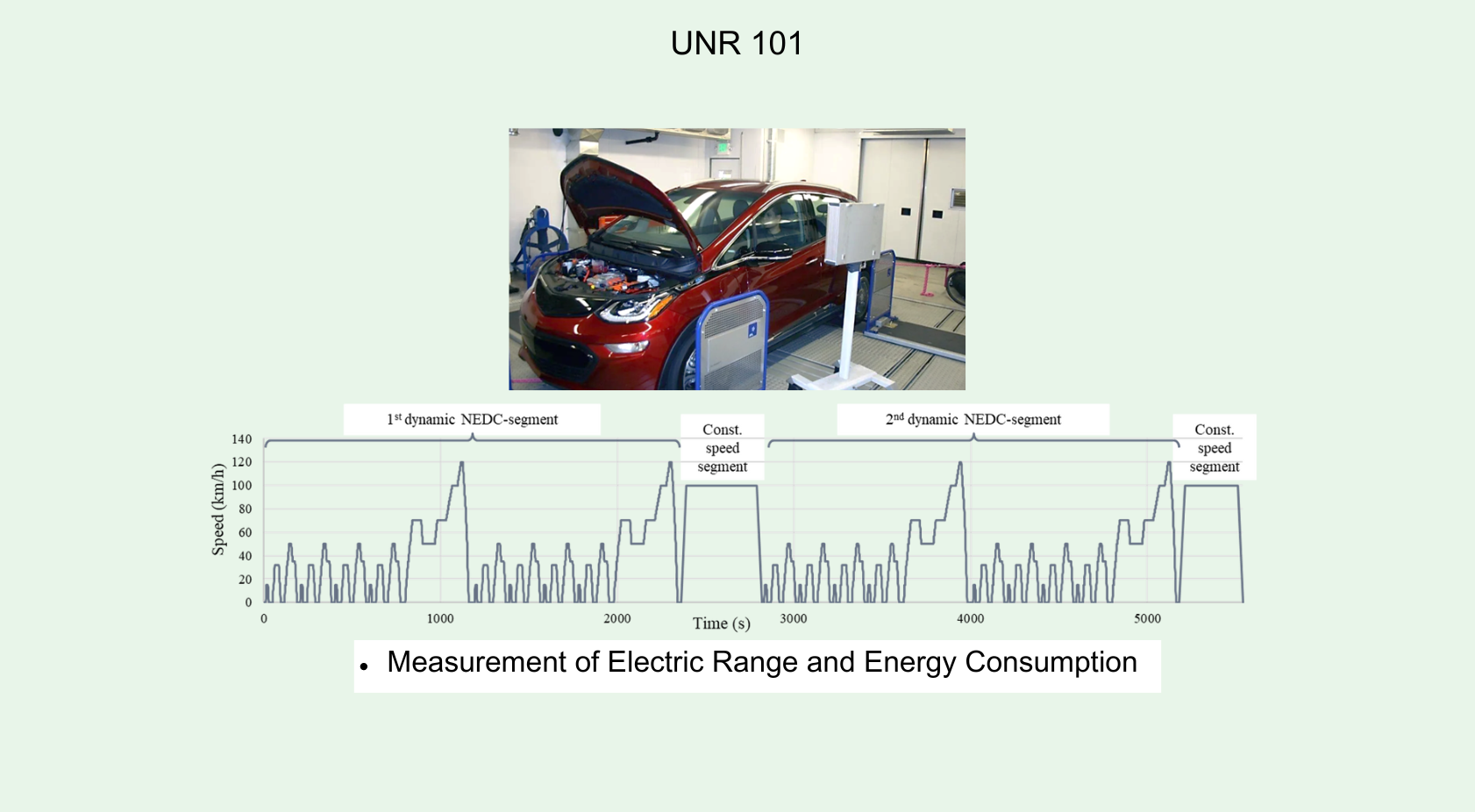

| Conformity of Production (CoP) Research & Development (R&D) – which includes tailpipe exhaust emission, fuel consumption, material test, air conditioning performance and engine performance. Electric range and energy consumption testing |
| Training related to exhaust emission |
| Soak Room, Emission Room, Chasis Dyno Room, Control Room, Shed Room, Solar Simulation System and EV Charging System |
| The most up to date exhaust emission facility in ASEAN |
| Able to test up to Euro 6d standard |
| ISO17025 Compliance |

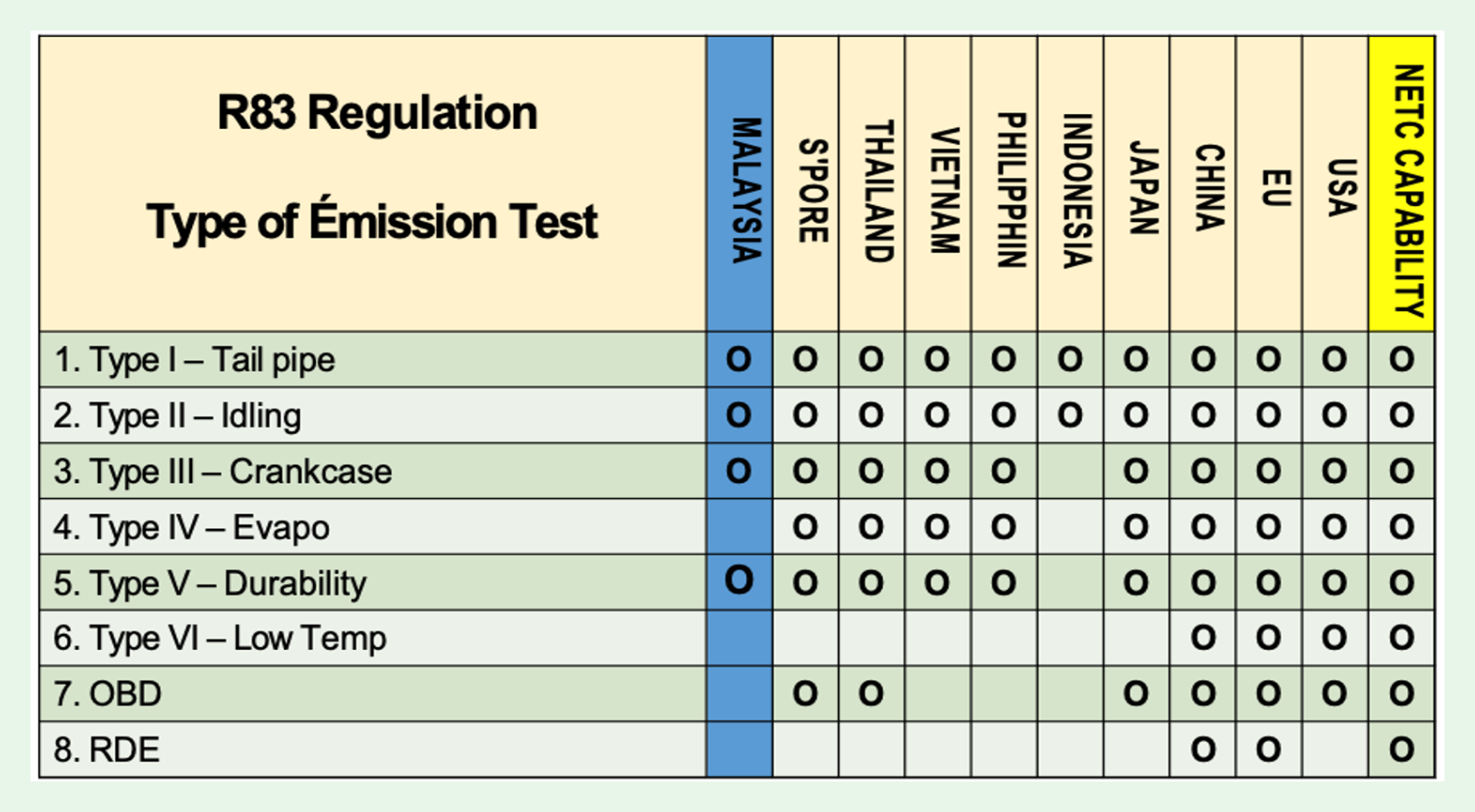

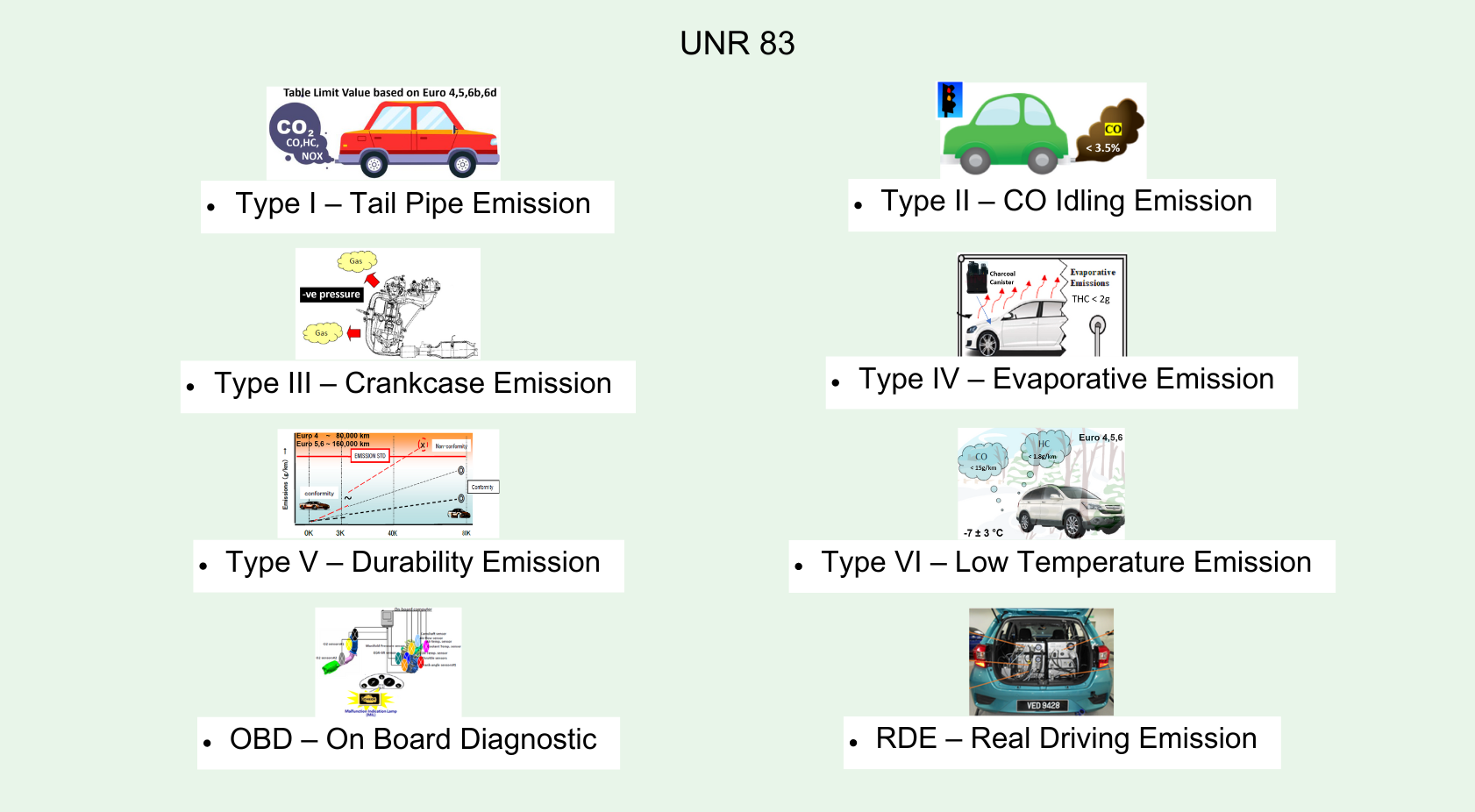

| Able to test complete UN R83 and UN R101 |
| Equipment includes up-to-date testing for Real Driving Emission (RDE) |
